Details:
Specifications:

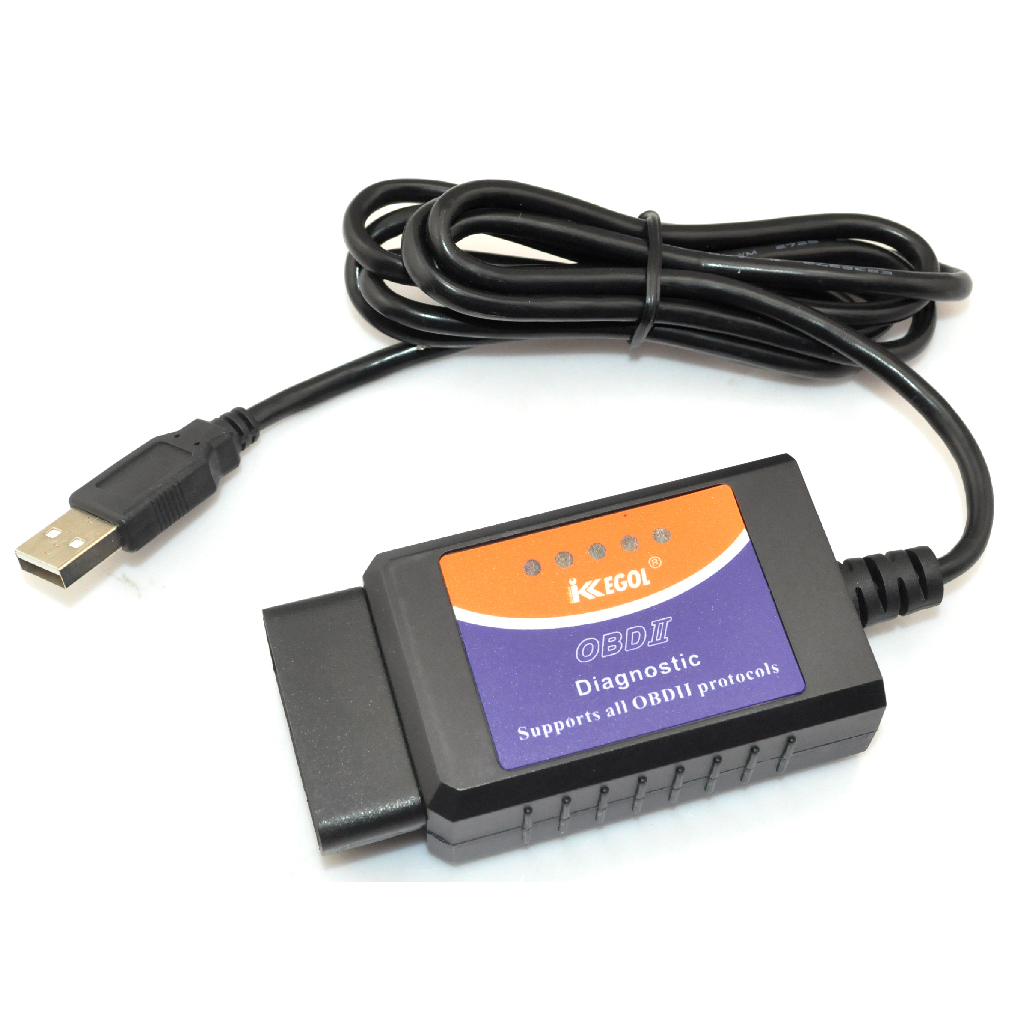

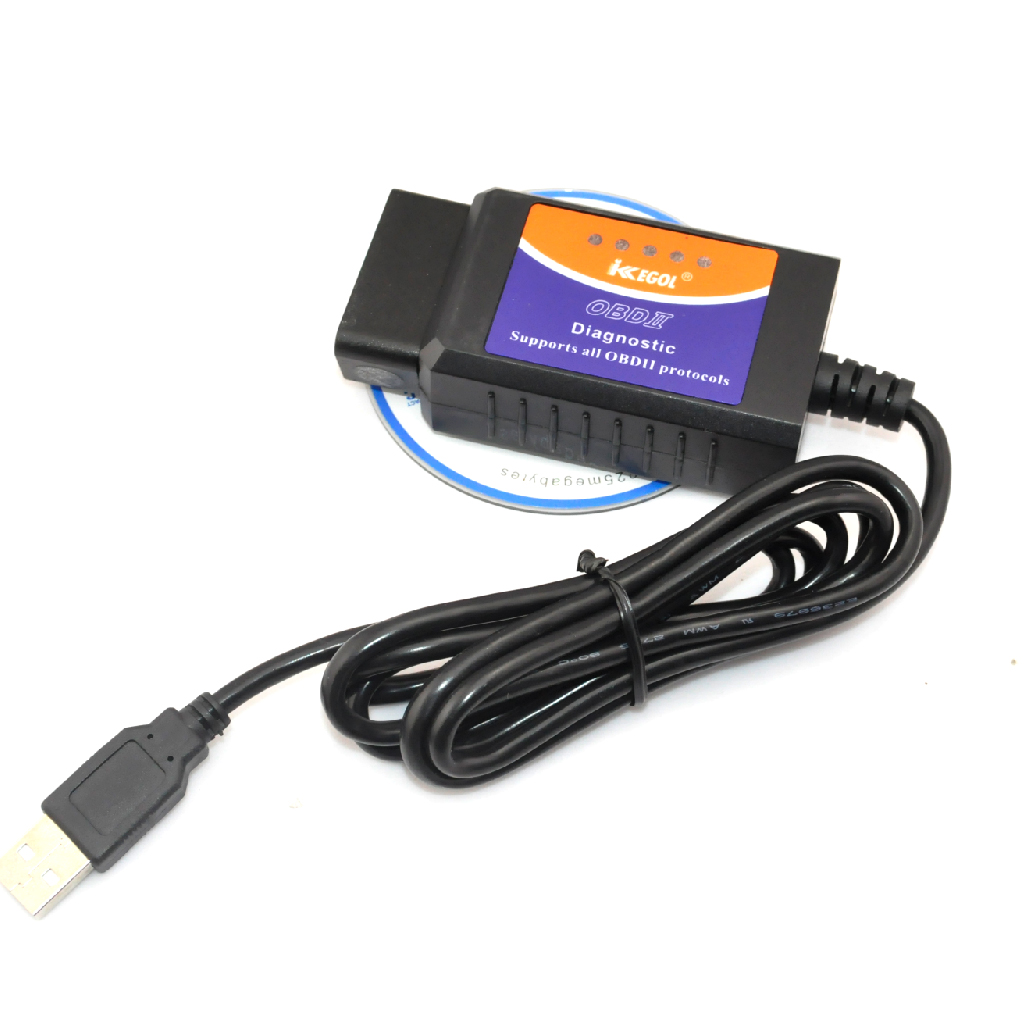

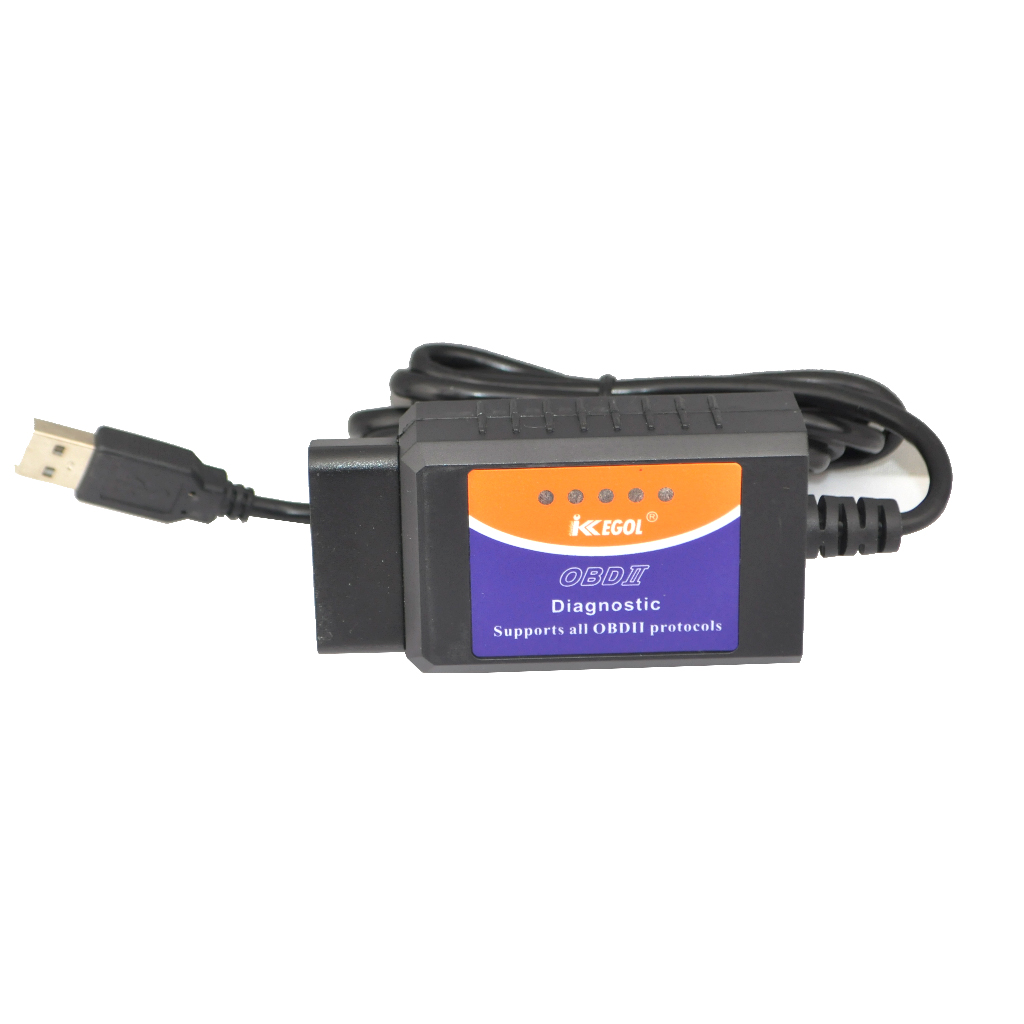

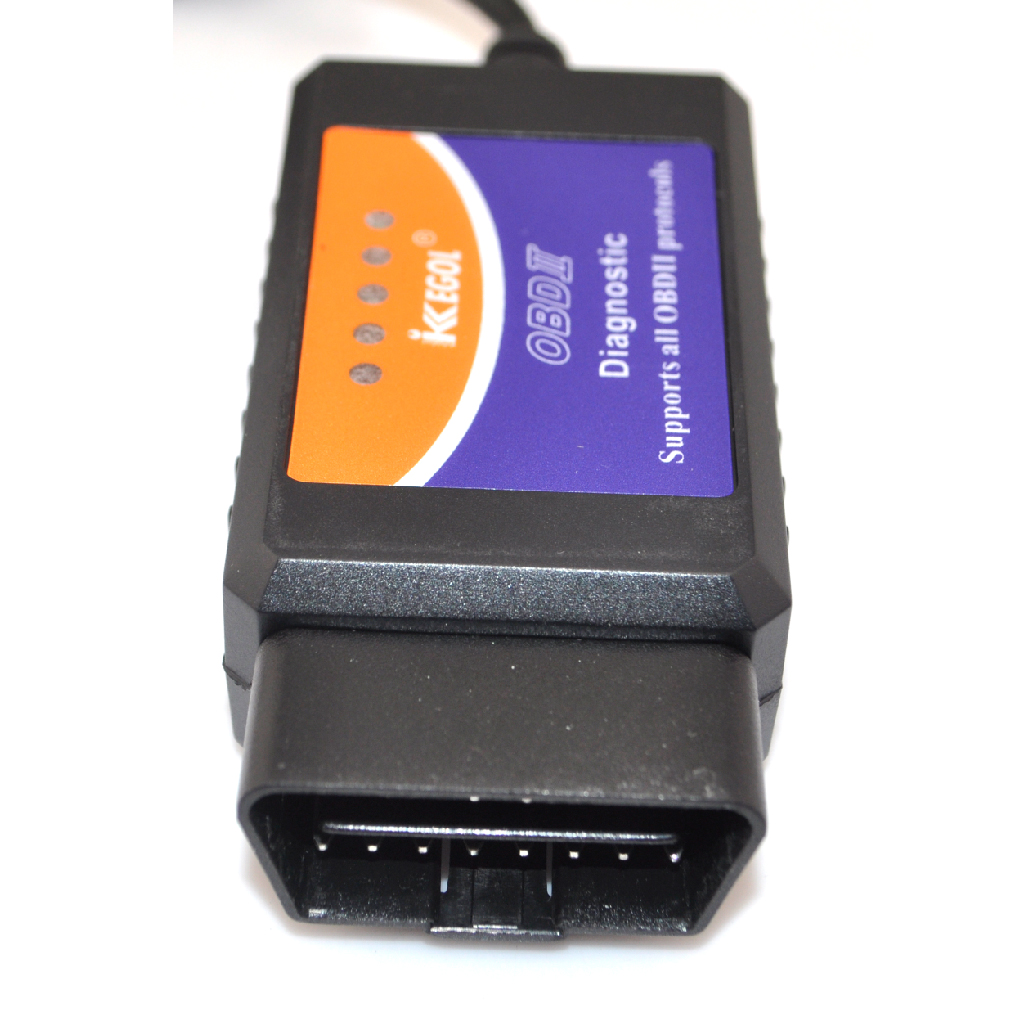

- ELM327 is the latest PC-based scan tool.
- It supports OBD-II protocols and is dispatched with a number of compatible programs.
- ELM327 OBD-II Software is a free program that allows you to use your PC and a hardware interface to get the information from your car's computer.
Features:
- Very user-friendly, easy to learn, and easy to install.
- The processor is an ELM327.
- The output protocol (connection to laptop) is USB.
- The software supports two platforms - DOS and Windows(include Windows 7).
- Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
- Clear trouble codes and turn off the MIL ("Check Engine" light).
- Display current sensor data, including:
- Engine RPM
- Calculated Load Value
- Coolant Temperature
- Fuel System Status
- Vehicle Speed
- Short Term Fuel Trim
- Long Term Fuel Trim
- Intake Manifold Pressure
- Timing Advance
- Intake Air Temperature
- Air Flow Rate
- Absolute Throttle Position
- Oxygen sensor voltages/associated short term fuel trims
- Fuel System status
- Fuel Pressure
- Many others...
Specifications:
- OBDII Protocols:
- ISO15765-4 (CAN)
- ISO14230-4 (KWP2000)
- ISO9141-2
- J1850 VPW
- J1850 PWM
- Output protocol: RS232
- Baud rate: 9600 or 38400
- Indicator LEDs: OBD Tx/Rx, RS232 Tx/Rx, Power
- Operating voltage: 12V, internal protection from short circuits/overvoltages
- Nominal idle current: 45mA
- Color: Back + Orange + Blue
- Item Size: 8.8 * 4.6 * 2.5cm
- Package Size: 20 * 15 * 2.5cm
- Item Weight: 130g
- Package Weight: 139g
- USB Cable Length: 176.5cm
Free software:
- Scantool.net
- GM Mode 22 Scan Tool by Terry
- OBD Gauge for PalmOS and Pocket PC by Dana Peters
- OBD Logger by Jonathan Senkerik
- OBD-II ScanMaster by Wladimir Gurskij (ScanMaster 3.52 - local copy)
- obd2crazy.com
- OBD2 Scantool by Ivan Andrewjeski
- OBDII for ELM322 by David Huffman
- pyOBD by Donour Sizemore for MacOSX and Linux
- RDDTC by Pete Calinski
- Real Scan by Brent Harris
- ScanTest for Pocket PC by Ivan Ganev aka a-ser
- wOBD by WDT
Aavailable cars:
- Benz 2001/02/03 W203 C200K (ISO)
- BMW X5 2002 (ISO) -3, -5, X5, Z3, Z4, Z8, 740I, 740L, 750IL, (ISO1941)
- Chevrolet Aveo (ISO)
- Citroen C3 2004 (ISO)
- Daihatsu YRV 2005 (ISO)
- Daihatsu YRV Turbo 2006 (ISO)
- Fiat Tipo 2002 (ISO)
- Ford New ocus 2006(CAN)
- Honda Accord 2006 JDM (ISO)
- Honda Accord Euro R 2004 JDM (ISO)
- Honda City GD8 (ISO)
- Honda Civic ES 1.6A (ISO)
- Honda Integra Type R DC5 JDM (ISO)
- Honda Jazz 1.4M (ISO)
- Hyundai Accent 2004 (ISO)
- Hyundai Getz 1.3A 2004 (ISO)
- Hyundai Getz 1.6M 2004 (ISO)
- Hyundai Matrix 2004 (ISO)
- Hyundai Santa Fe 2.4A (ISO)
- Hyundai Sonata GLS (ISO)
- Hyundai Sonata 2005 (ISO)
- Hyundai Tuscani FX (ISO)
- Kia Carens 2005 (ISO)
- Kia Magentis 2005 (ISO)
- Kia Rio LS (ISO)
- Kia Sorento SUV 2005 (ISO)
- Lexus es300 Mazda 2 (CAN)
- Mazda 5 (CAN)
- Mazda 6 (CAN)
- Mazda Premacy 2001 (ISO)
- Mazda RX8 (CAN)
- Mitsubishi Colt 2003 (ISO)
- Mitsubishi Colt Plus 2005 (ISO)
- Mitsubishi Eclipse(GST--Turbo Car can be tested for the year 1995-2000; RS/GS----1994-1996 GS all can do; Turbo Car for the year 1996-2000, only have speed and TPS, can clear the DTCS)
- Mitsubishi Lancer Evolution IX 2006 (ISO)
- Mitsubishi Pajero 3.5 V6 2006 (ISO)
- Nissan Sunny B14 (ISO)
- Nissan Sunny VIP FB15 (ISO)
- Nissan X-Trail 2.0L 2004 (ISO)
- Nissan X-Trail 2.5L 2004 (ISO)
- Peugeot 206 2001 Only can show RPM
- Peugeot 206 (ISO)
- Peugeot 307 (ISO)
- Peugeot 407 (ISO)
- Renault Megane II 2005 (ISO)
- Renault Kangoo 2006 (ISO)
- Subaru Impreza 1.6TS 2002 (ISO)
- Subaru Impreza WRX 2005 (ISO)
- Nissan Sunny (N16)
- Nissan Cefiro (Teana) 2005
- Nissan sentra 1.8 2000/2005
- Nissan Cefiro (Teana) 2005
- Proton Perdana V6
- Subaru Legacy GT 2005
- Peugeot 206 2000
- Suzuki Jimny 1.3 2000
- Diesel engine
Package Includes:
- 1 * USB interface OBD2 Cable
- 1 * CD software
