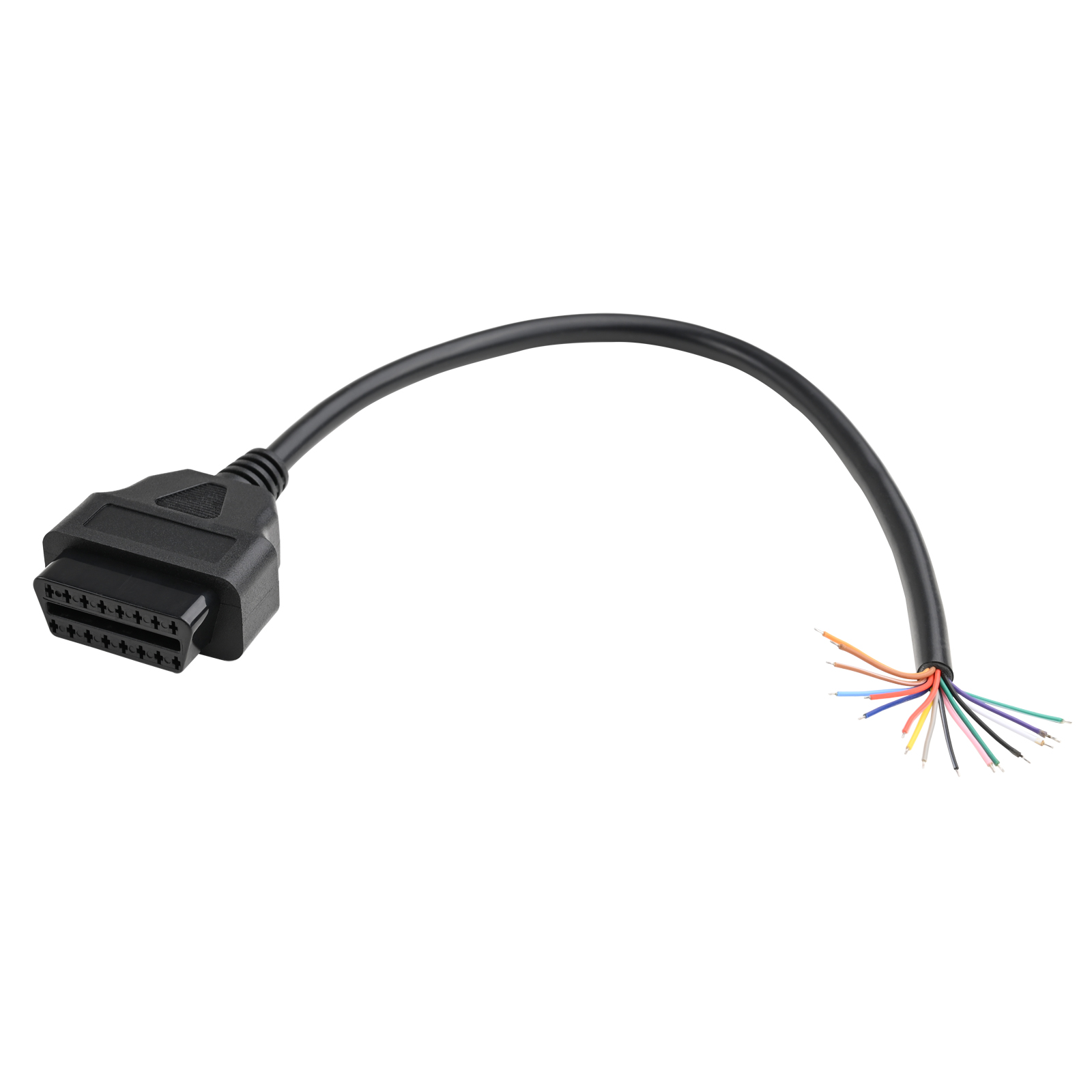

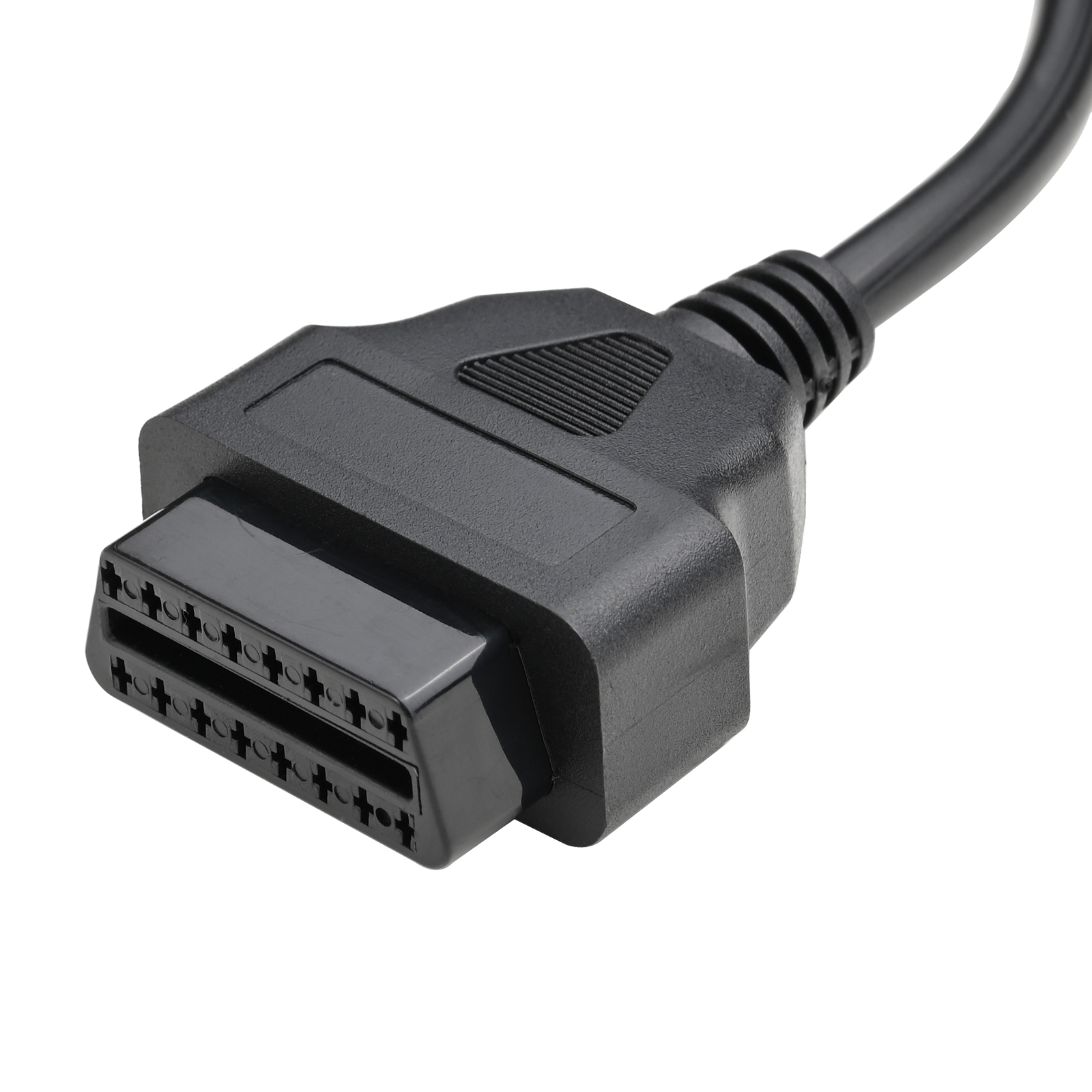

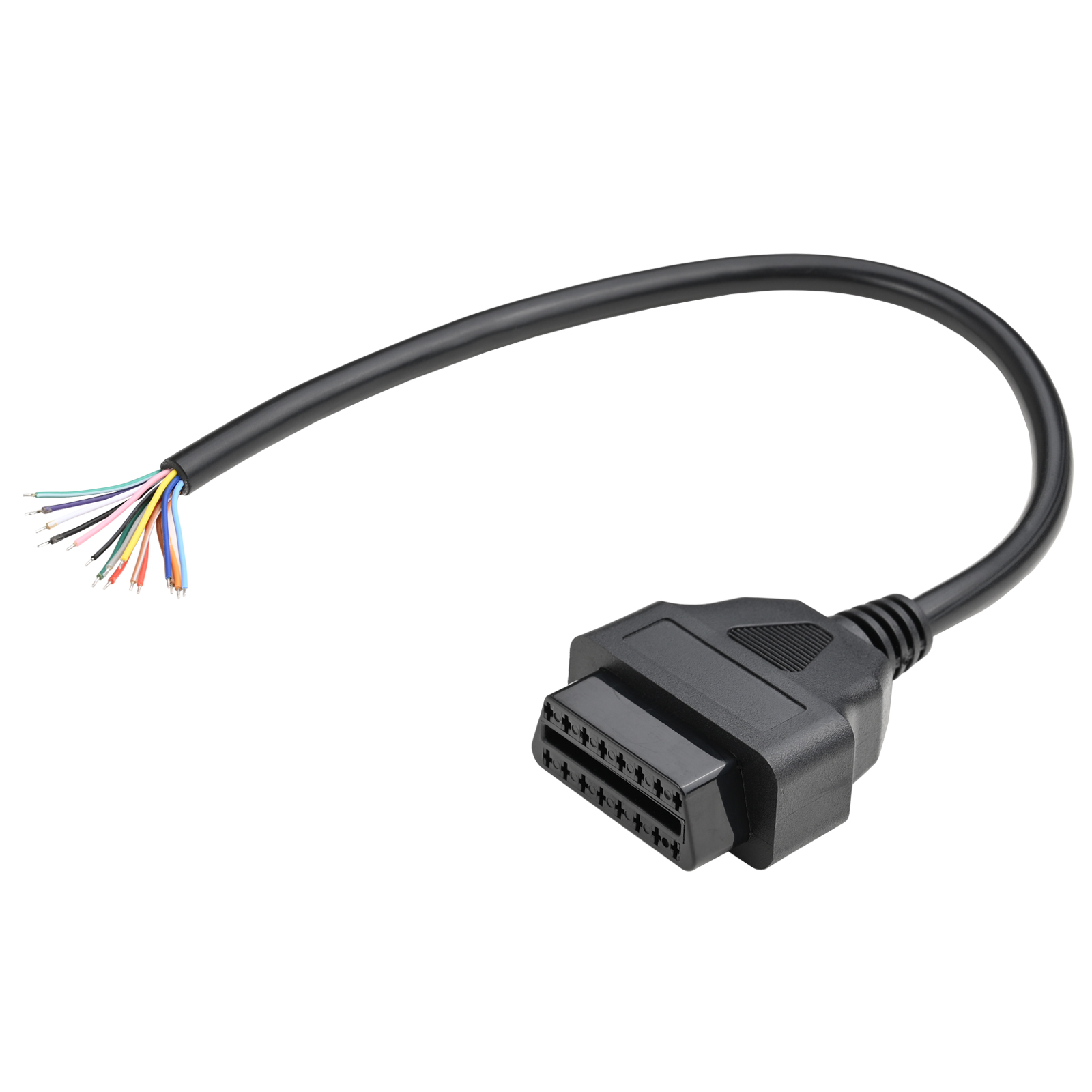

Details: ✔✔16 Pin J1962 OBD2 Female Connector Cable Plug Pigtail
✔✔All 16 Pins Female Connected with different colors wires for different applications

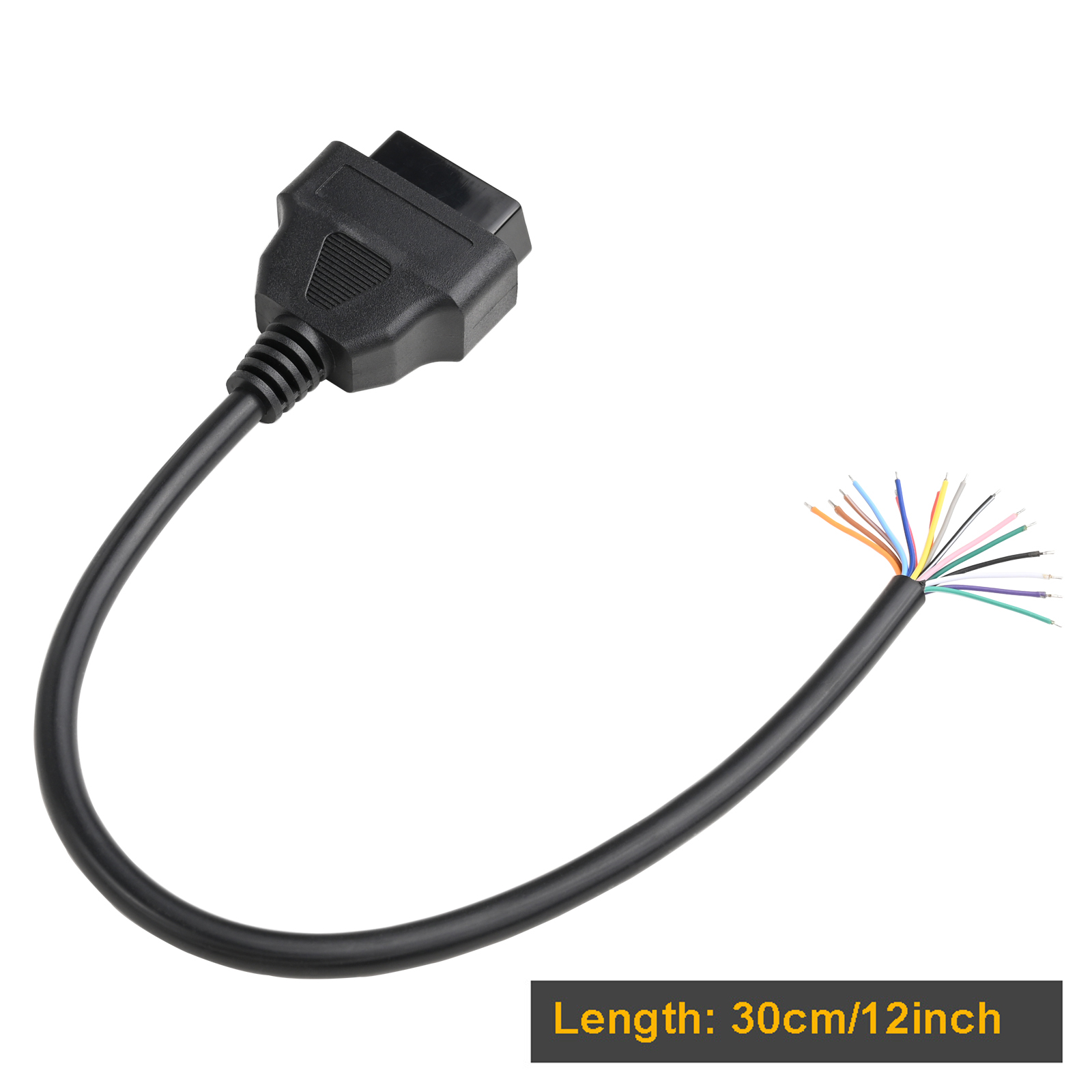

✔✔Cable Pigtail Length: 30cm / 12"
✔✔Great for DIY and homemade projects
✔✔All 16 Pins Connected,with high quality, work for your unique project.Different device with different pinout, please check it before install it, thanks.

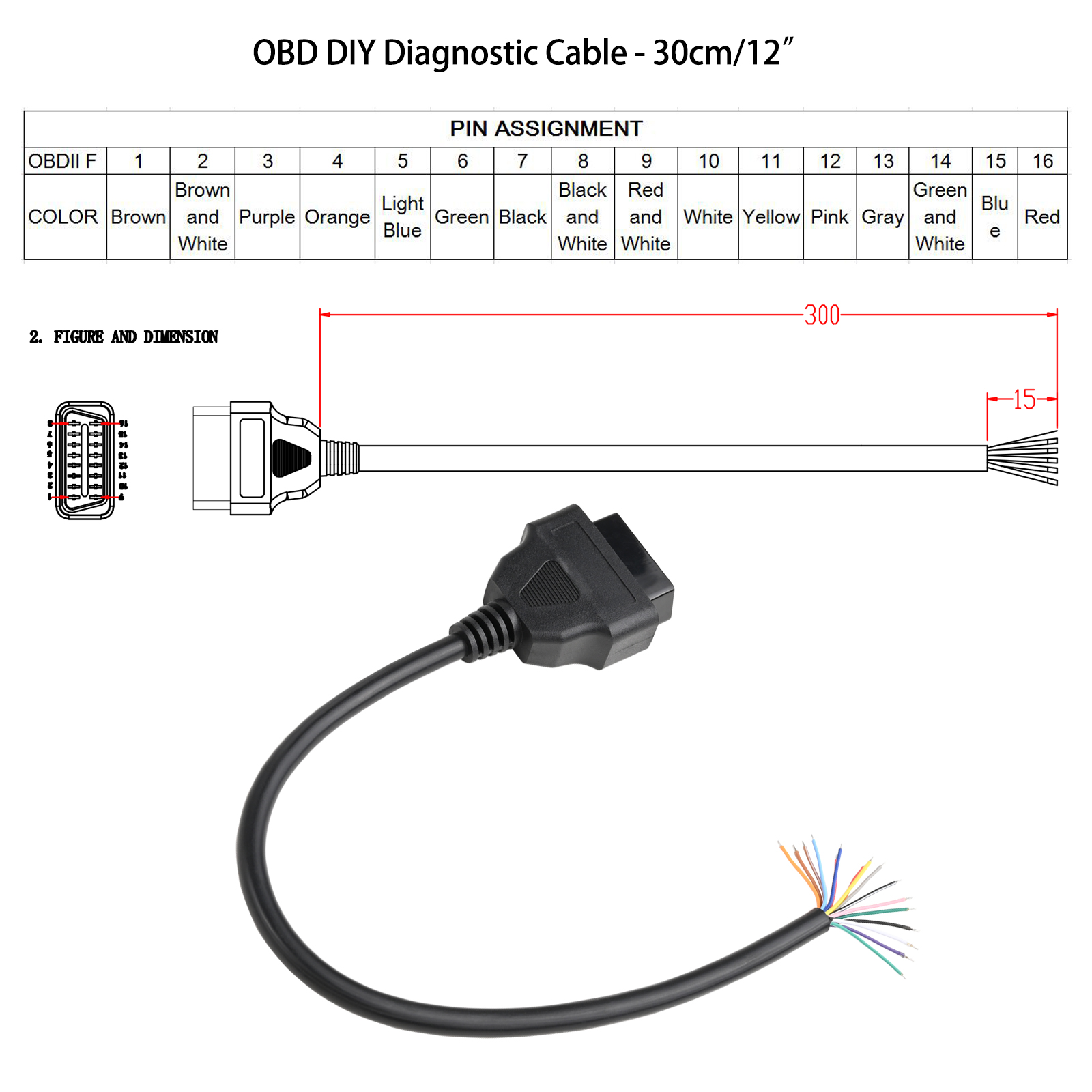

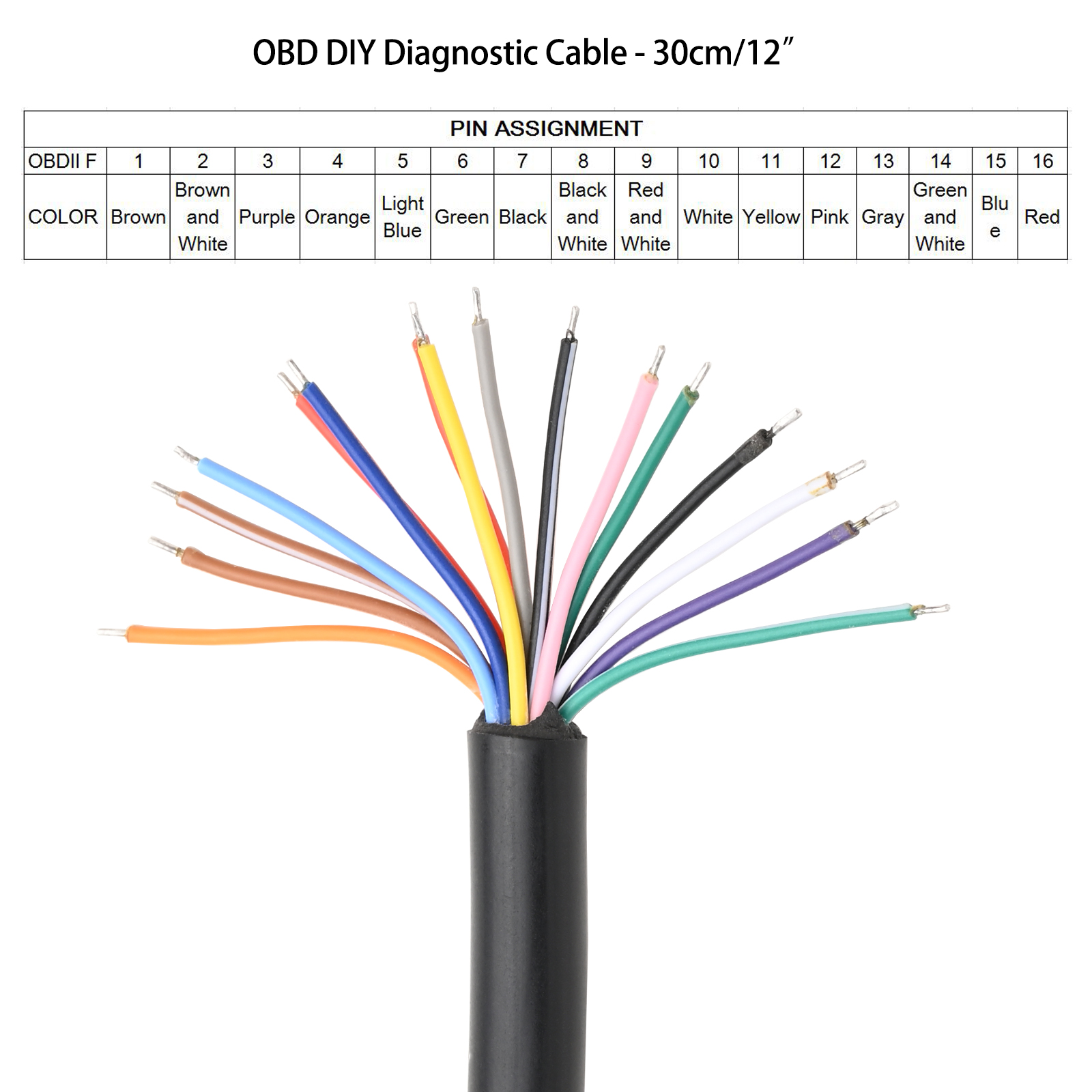

✔✔One of color Pin Assignments:
1-Brown ,
2-Brown/white,
3-Red,
4-Red/white,
5-Green,
6-Green/white,
7-Black,
8-Black/white,
9-Oranges,
10-White,
11-Yellow,
12-Pink,
13-Grey,
14-Teal,
15-Blue,
16-Purple.

OBDII Pin out:
1:Black - Vendor
2:Brown – J1850 Bus +
3.Red - Vendor
4:Orange – chassis ground
5:Yellow – signal ground
6:Green – CAN high
7:Blue – K-line
8:Purple - vendor
9:Gray - vendor
10:White– j1850 BUS
11:Pink - vendor
12:teal - vendor
13:Black/White - vendor
14:Brown/White – CAN low
15:Red/White – K line low
16:Green/White - Battery

The Second color Pin Assignments:
1 - red
2 - white
3 - orange
4 - blue
5 - green
6 - yellow
7 - brown
8 - purple
9 - red/black
10 - white/black
11 - orange/black
12 - blue/black
13 - green/black
14 - yellow/black
15 - brown/black
16 - purple/black

Package included:
1 X 30 cm 16 Pin OBDII J1962F Female Connector Pigtail Wire
