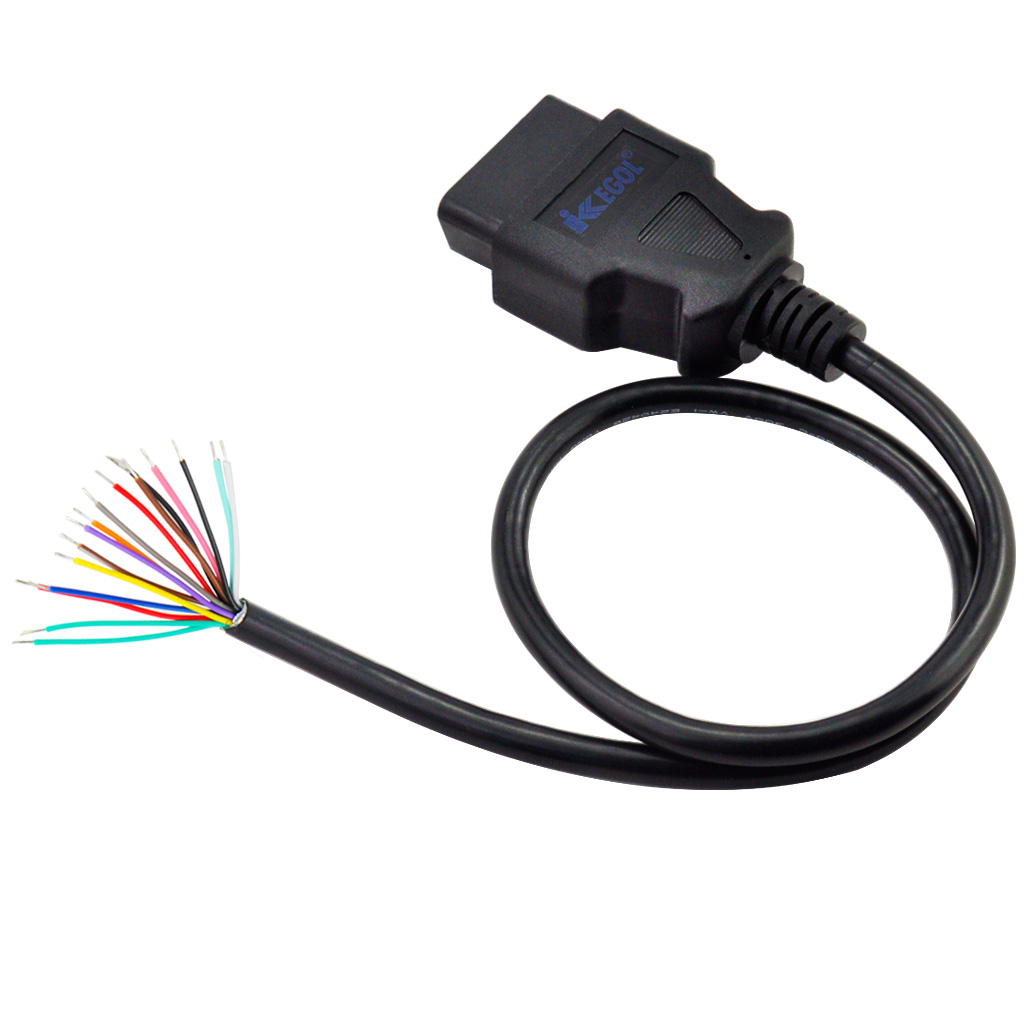

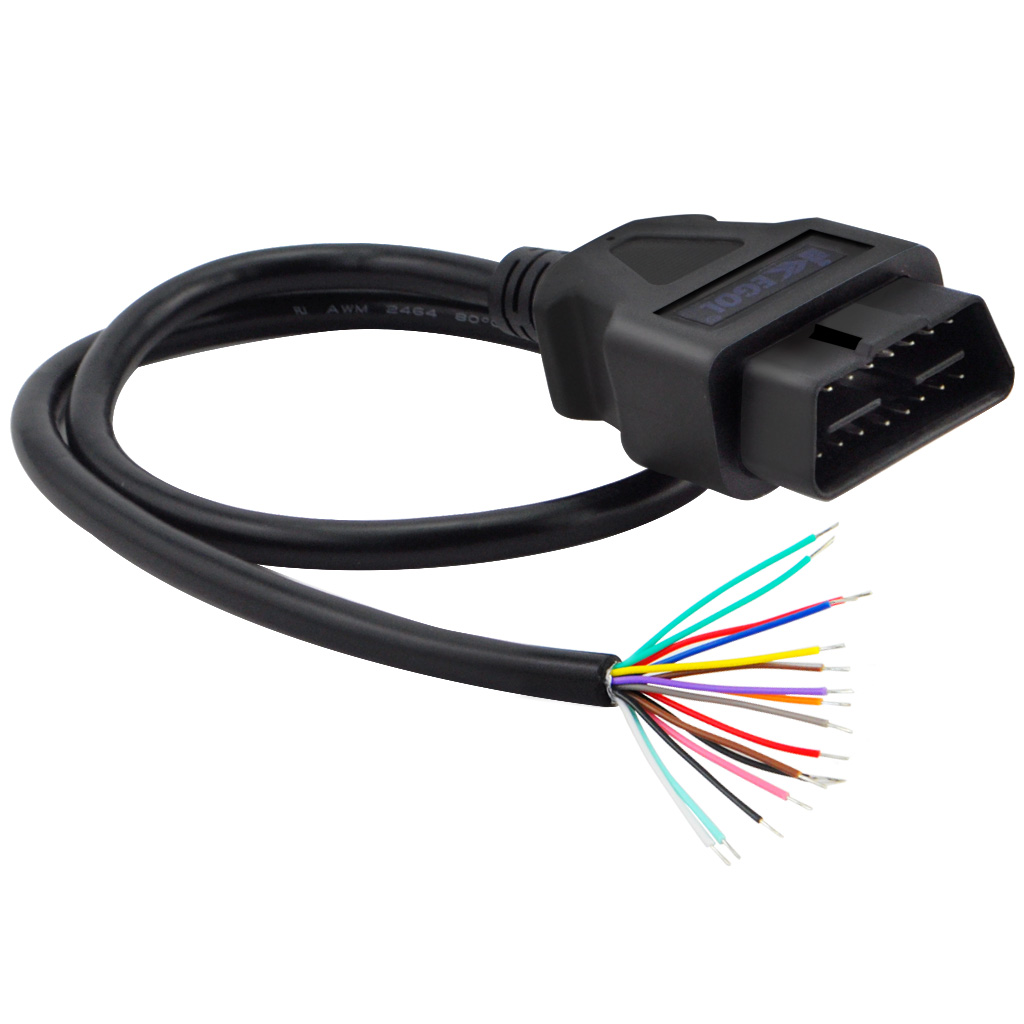

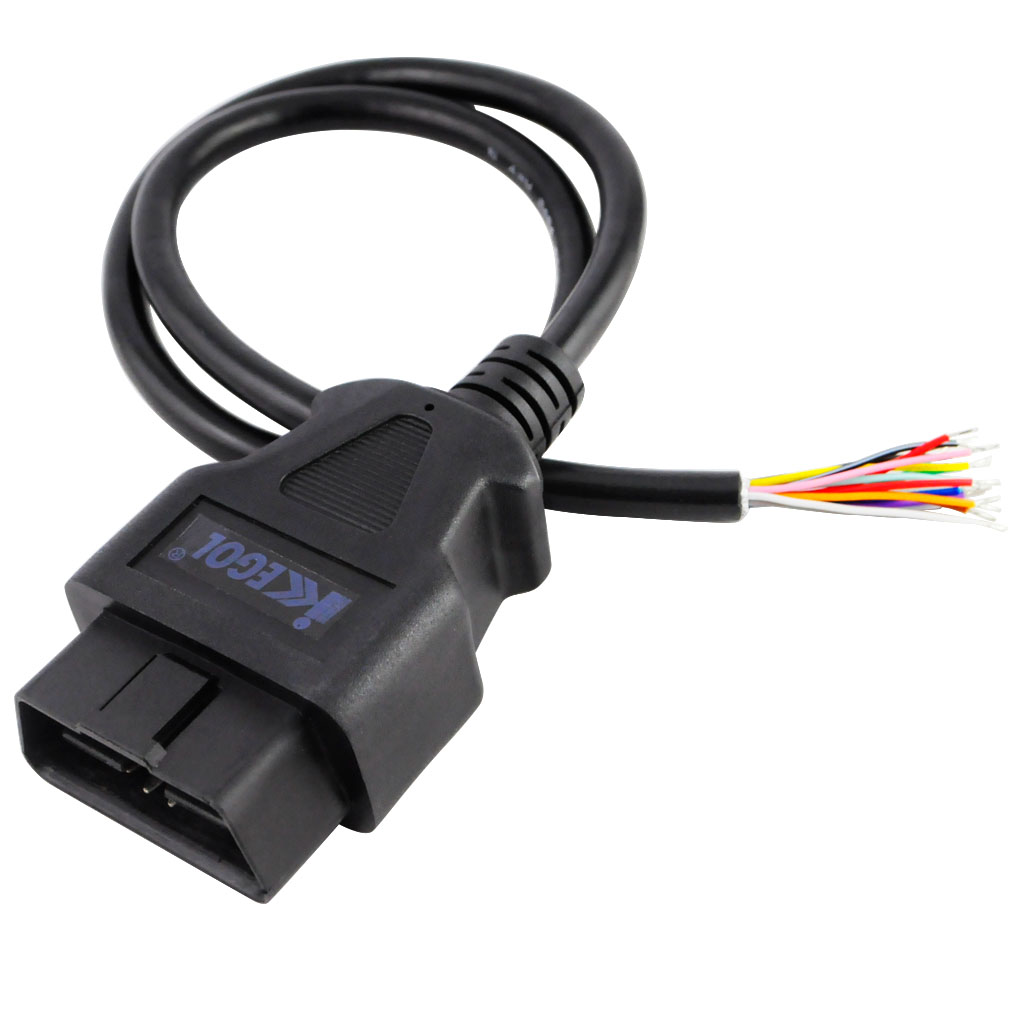

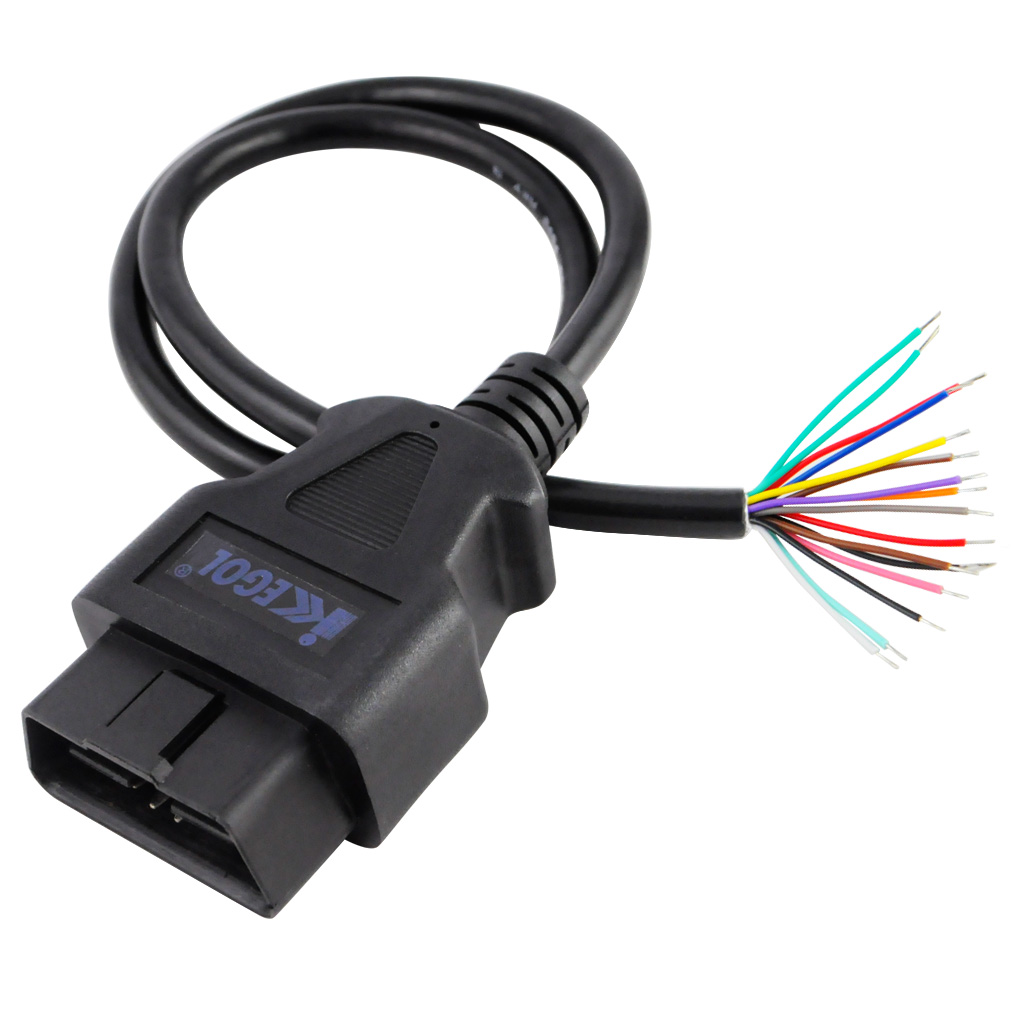

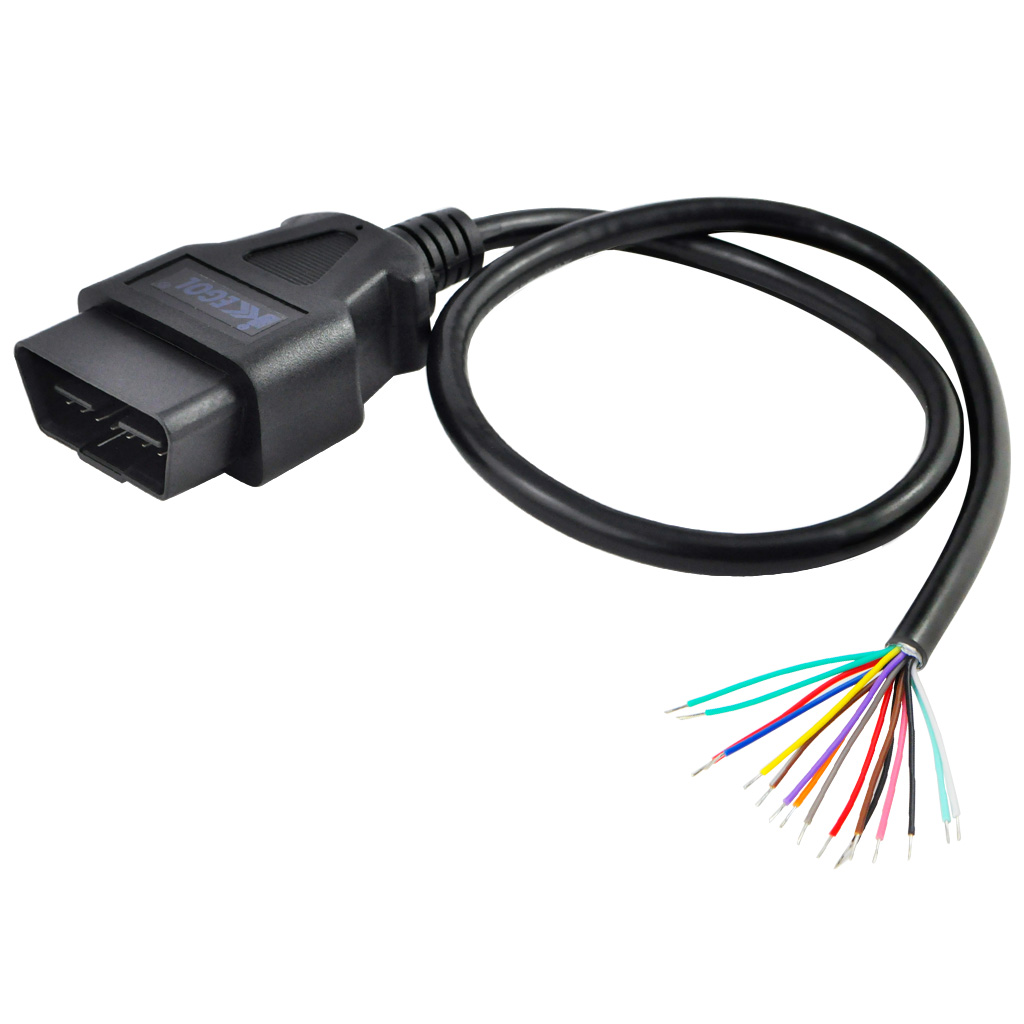

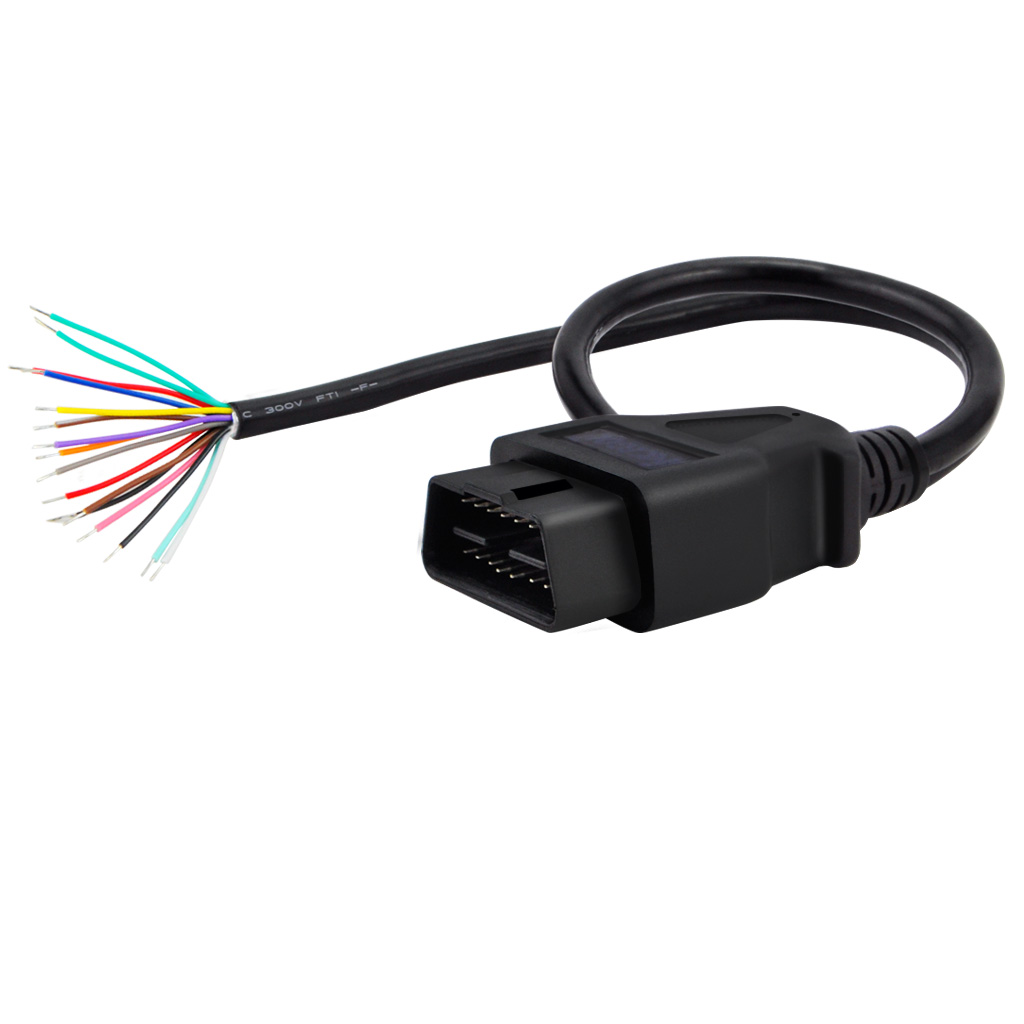

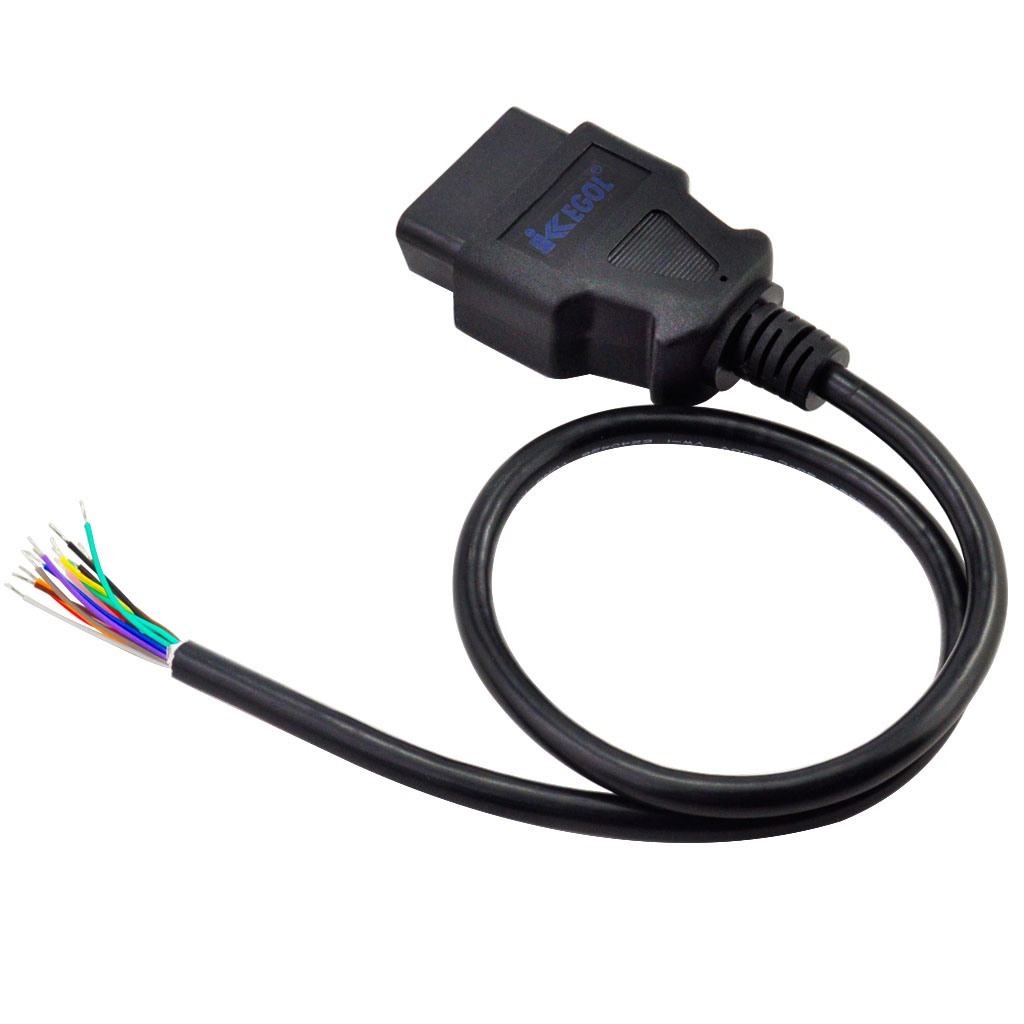

Details: 16 Pin J1962 OBD2 Male Connector Cable Plug Pigtail
All 16 Pins Male Connected with different colors wires for different applications

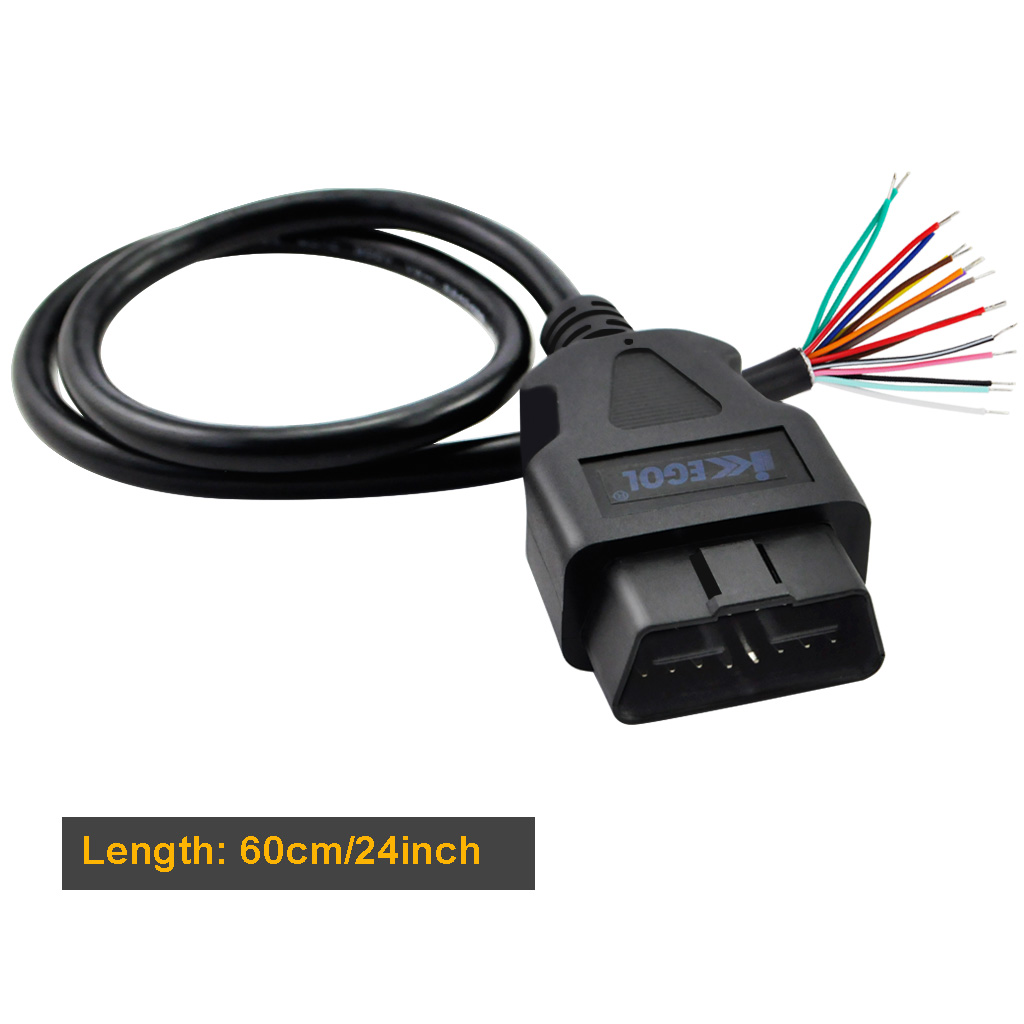

Cable Pigtail Length:60cm / 24"
Great for DIY and homemade projects
All 16 Pins Connected,with high quality, work for your unique project
Product Description
Descrption:
16 Pin J1962 OBD2 OBD-II Male Connector to Open Plug Wire, OBD Diagnostic Extension Cable Pigtail for DIY (2ft, 60cm)
This is a male plug end that will connect to an OBD II in a car or DIY any projects

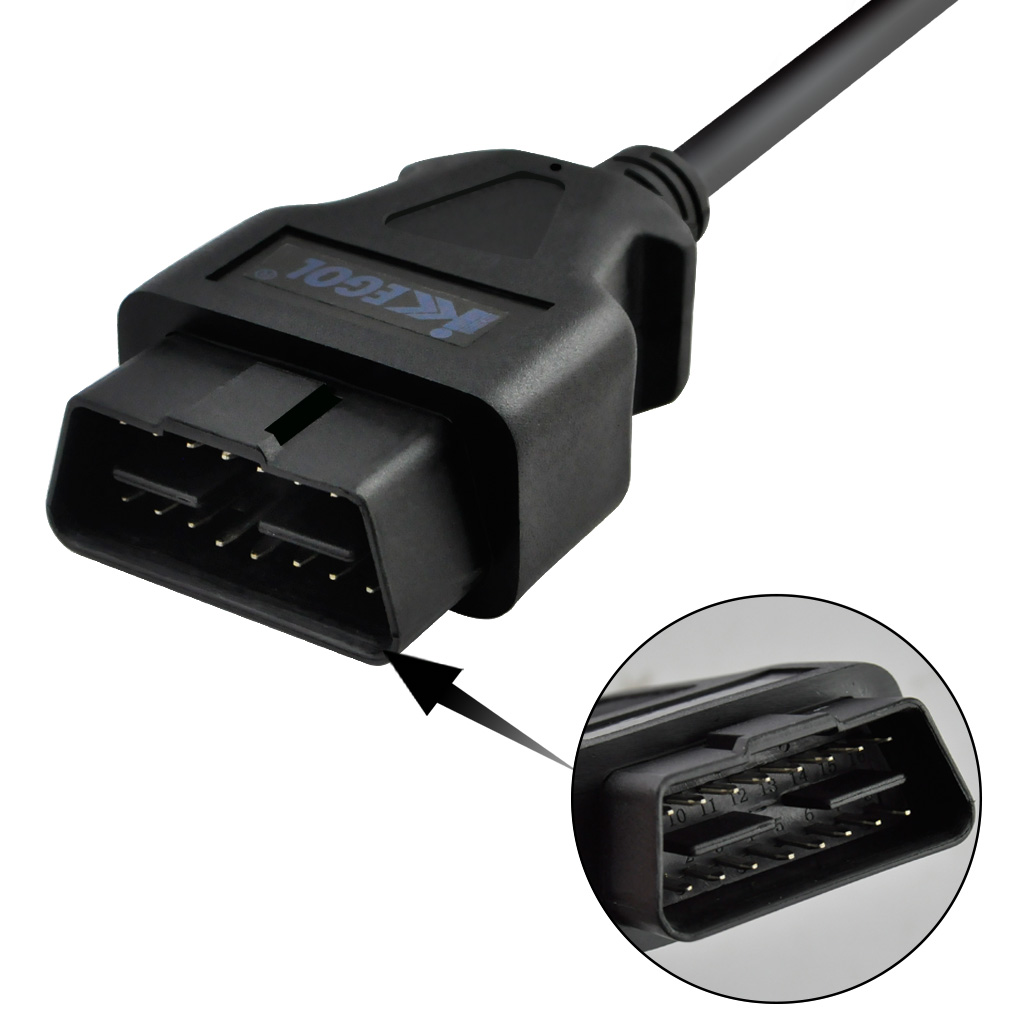

Connection: 16 Pin OBDII J1962 male Connector, Open Plug Wire.

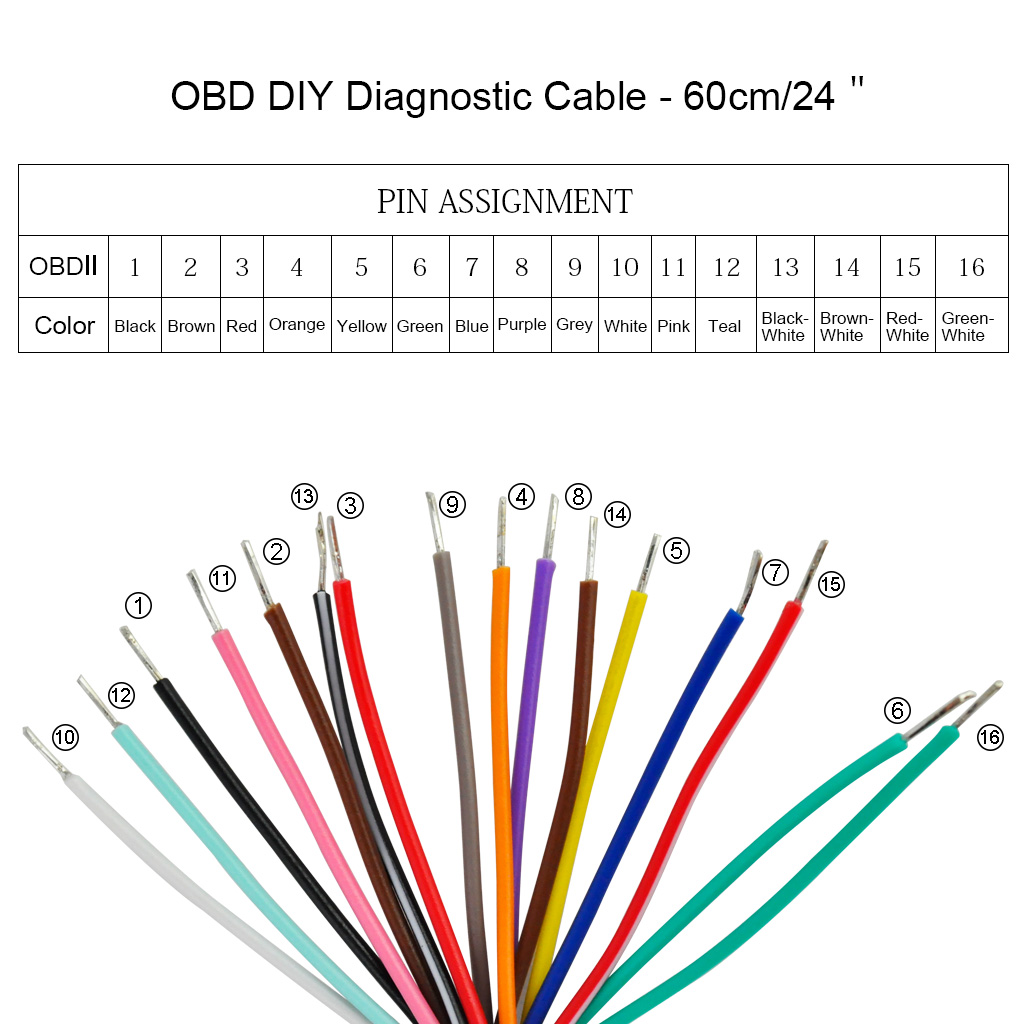

Pinout:
1:Black - Vendor
2:Brown – J1850 Bus +
3.Red - Vendor
4:Orange – chassis ground
5:Yellow – signal ground
6:Green – CAN high
7:Blue – K-line
8:Purple - vendor
9:Gray - vendor
10:White– j1850 BUS
11:Pink - vendor
12:teal - vendor
13:Black/White - vendor
14:Brown/White – CAN low
15:Red/White – K line low
16:Green/White - Battery
Package included:
1 x 60cm 16-Pins OBDII J1962 male Connector
All 16 Pins Male Connected with different colors wires for different applications
Cable Pigtail Length:60cm / 24"
Great for DIY and homemade projects
All 16 Pins Connected,with high quality, work for your unique project
Product Description
Descrption:
16 Pin J1962 OBD2 OBD-II Male Connector to Open Plug Wire, OBD Diagnostic Extension Cable Pigtail for DIY (2ft, 60cm)
This is a male plug end that will connect to an OBD II in a car or DIY any projects
Connection: 16 Pin OBDII J1962 male Connector, Open Plug Wire.
Pinout:
1:Black - Vendor
2:Brown – J1850 Bus +
3.Red - Vendor
4:Orange – chassis ground
5:Yellow – signal ground
6:Green – CAN high
7:Blue – K-line
8:Purple - vendor
9:Gray - vendor
10:White– j1850 BUS
11:Pink - vendor
12:teal - vendor
13:Black/White - vendor
14:Brown/White – CAN low
15:Red/White – K line low
16:Green/White - Battery
Package included:
1 x 60cm 16-Pins OBDII J1962 male Connector
