Details: ✔✔16 Pin OBDII J1962 male connector pigtail cable open wire
✔✔All 16 Pins male connected with different colors wires for different applications

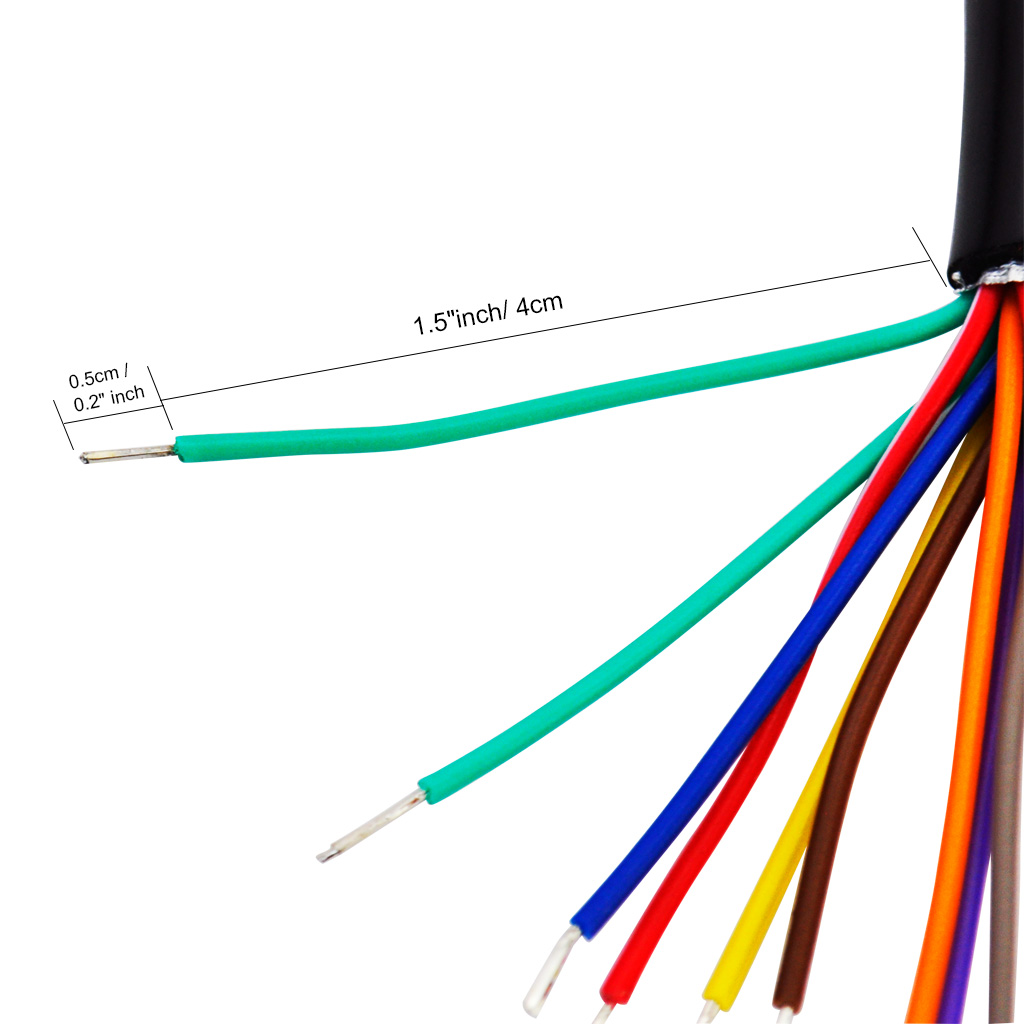

✔✔Cable Pigtail Length: 30cm / 12'',it can be used for 12V Car and 24V Truck
✔✔Great for DIY and homemade projects,DIY Mobley USB Adapter
✔✔One of pinout, 1-Brown ,2-Brown/white,3-Red,4-Red/white,5-Green,6-Green/white,7-Black,8-Black/white,9-Oranges,10-White,11-Yellow,12-Pink,13-Grey,14-Teal,15-Blue,16-Purple．Different device with different pinout, please check it before install it, thanks.

Product Description

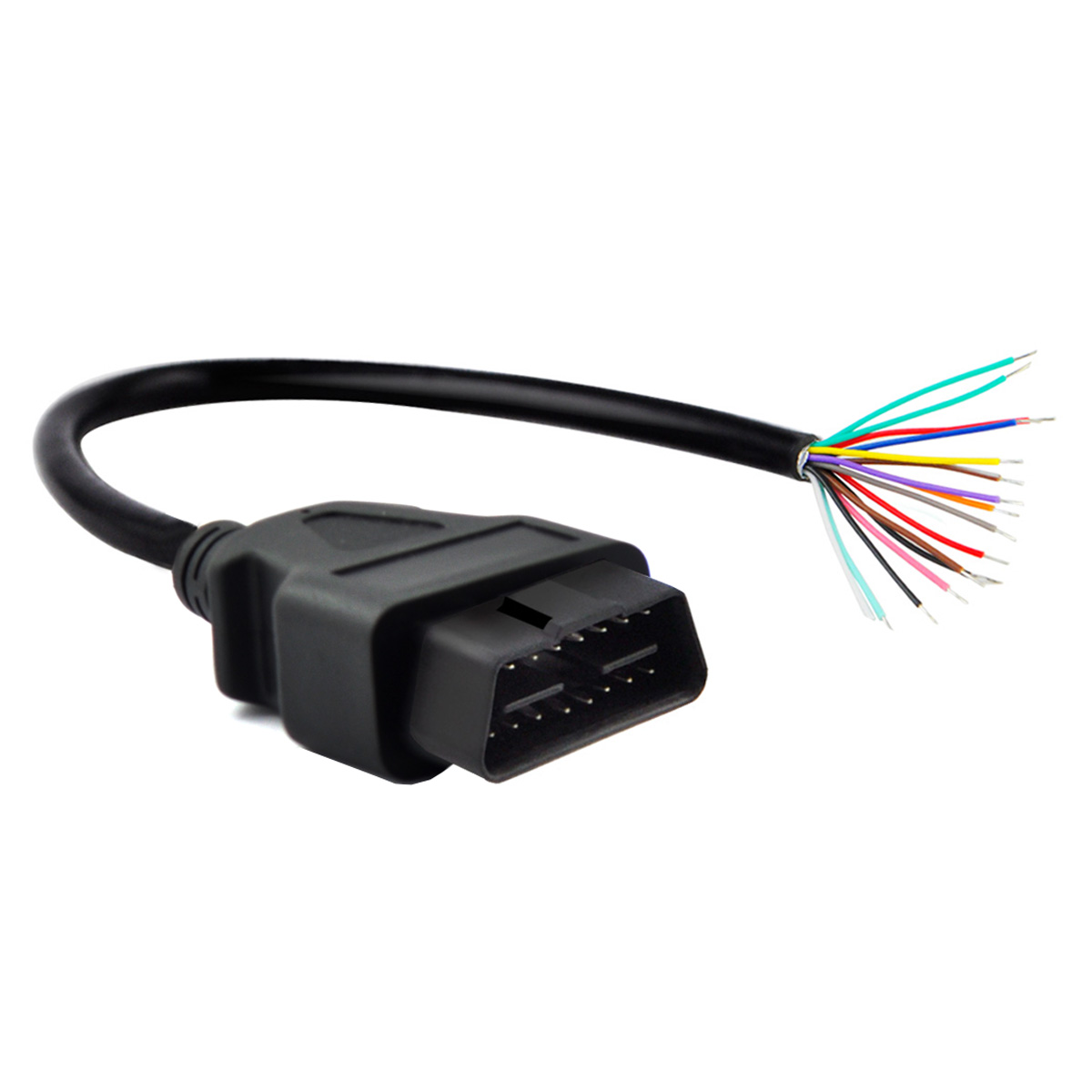

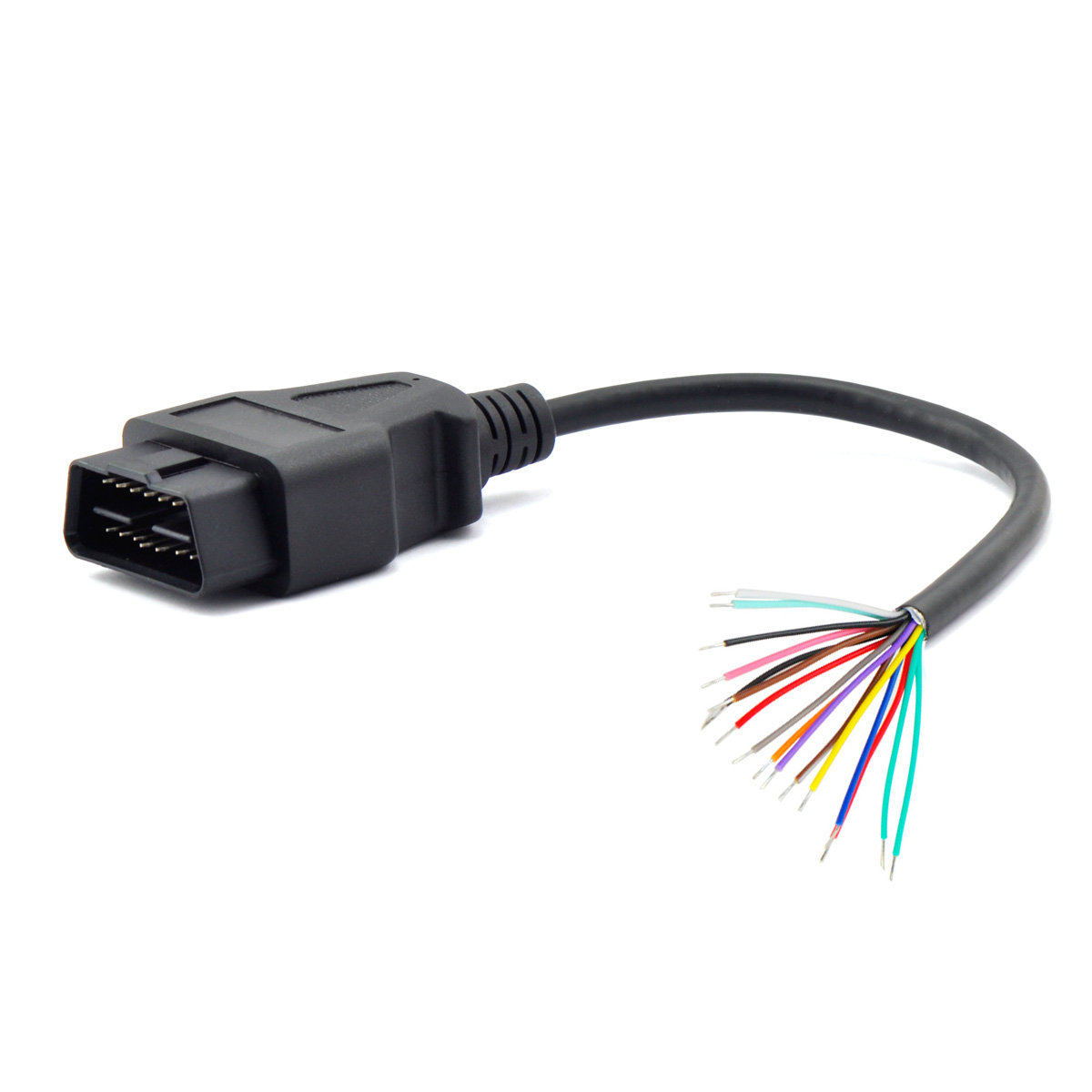

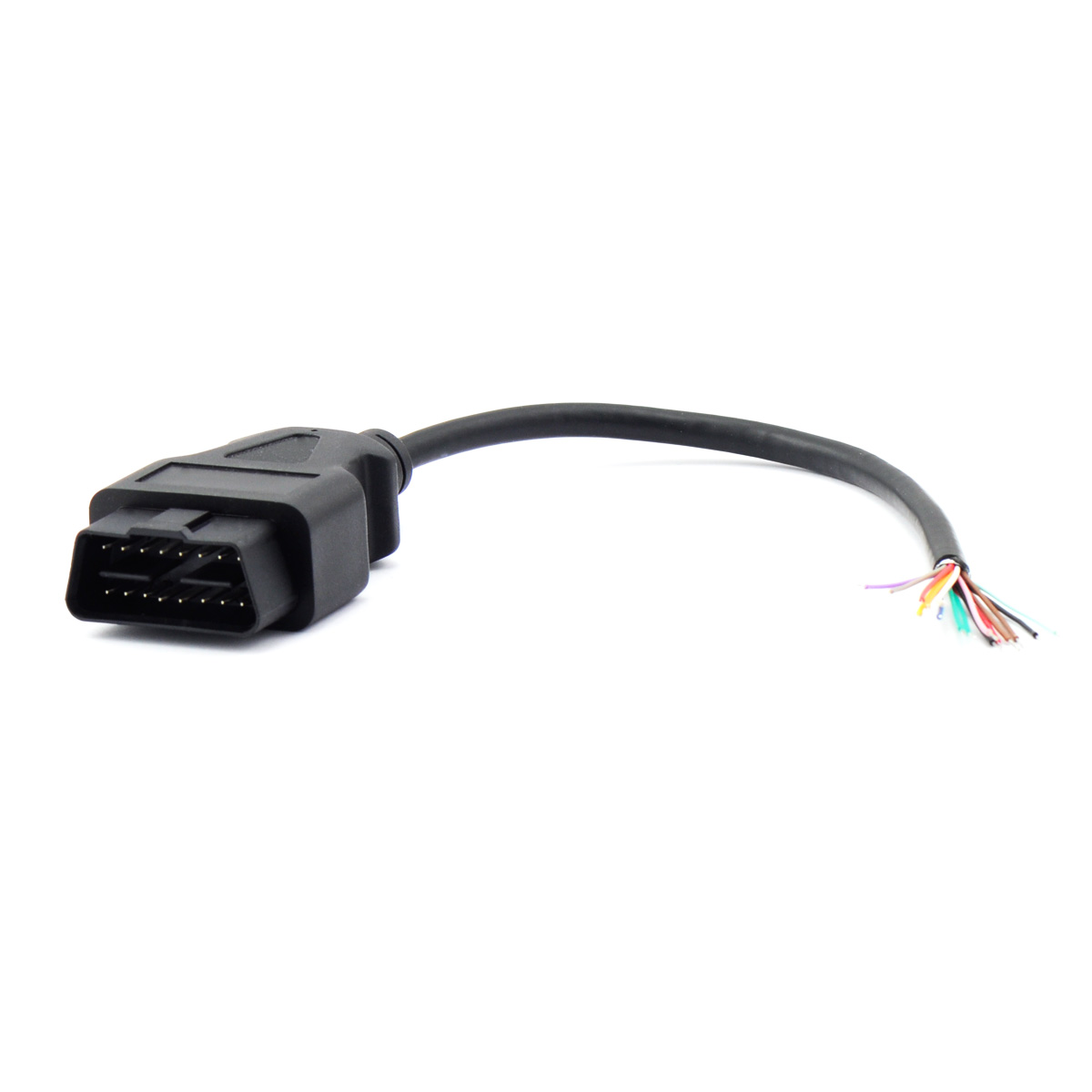

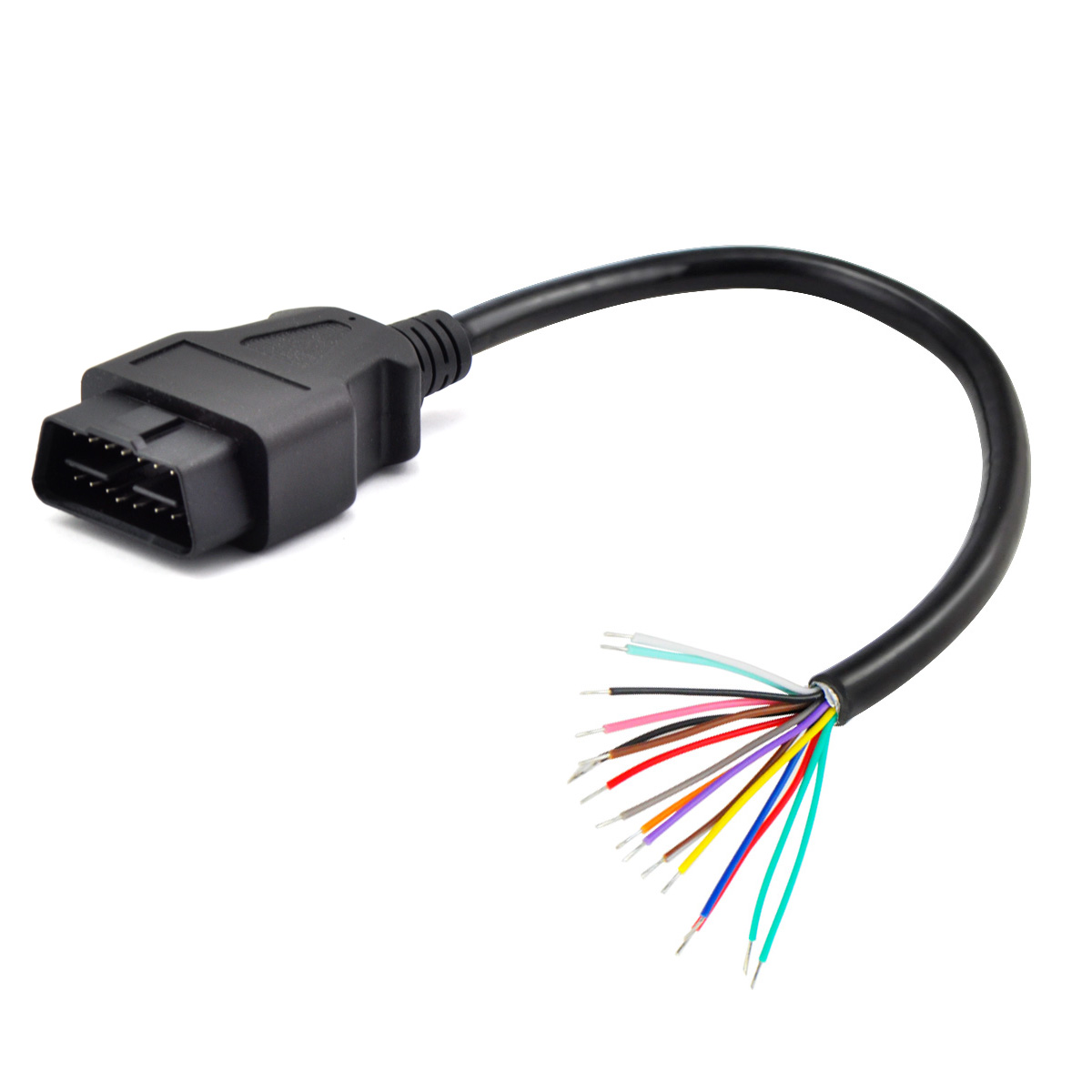

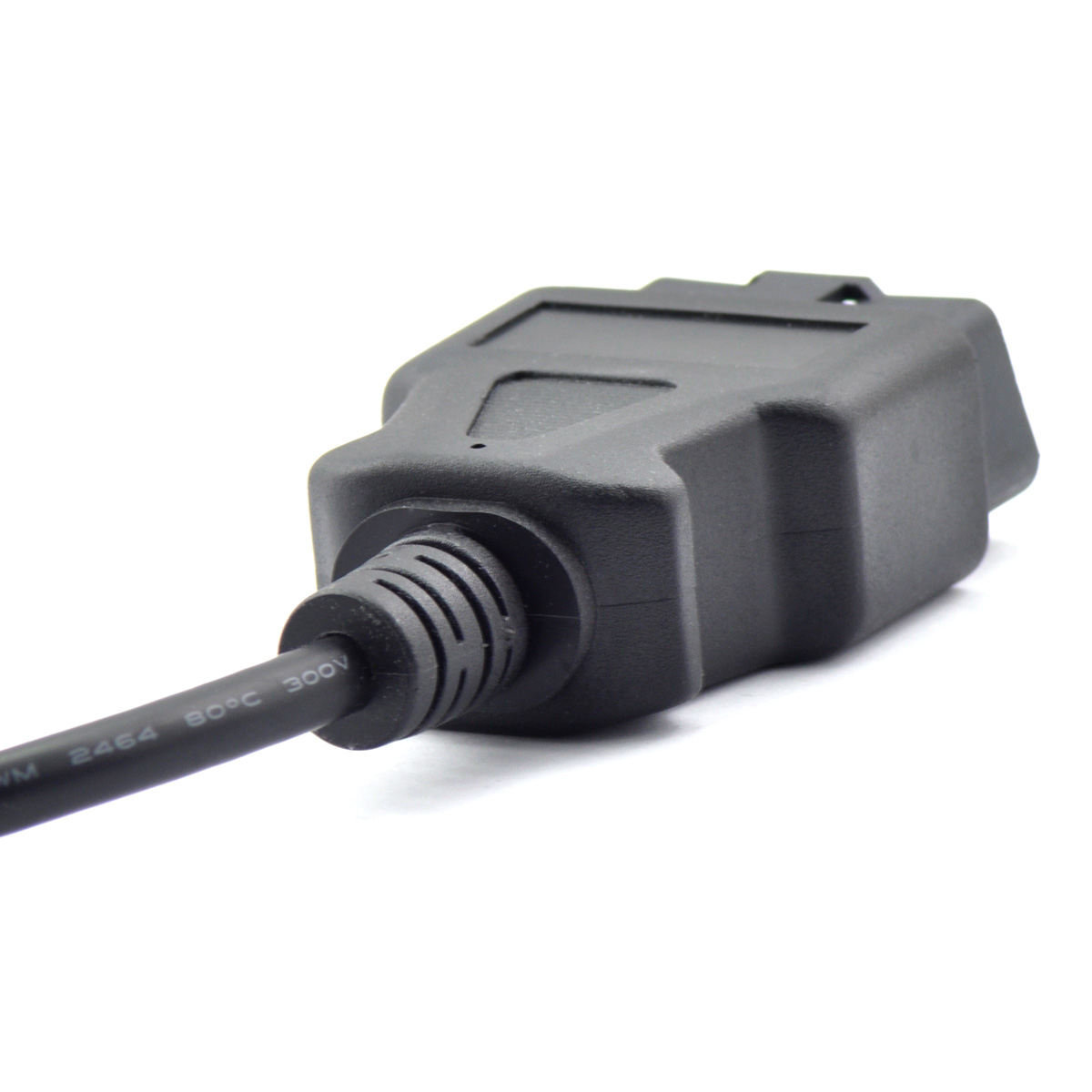

16 Pin J1962 OBD2 OBD-II Male Connector to Open Plug Wire, OBD Diagnostic Extension Cable Pigtail for DIY (30cm / 12'')
This is a male plug end that will connect to an OBD II in a car or DIY any projects

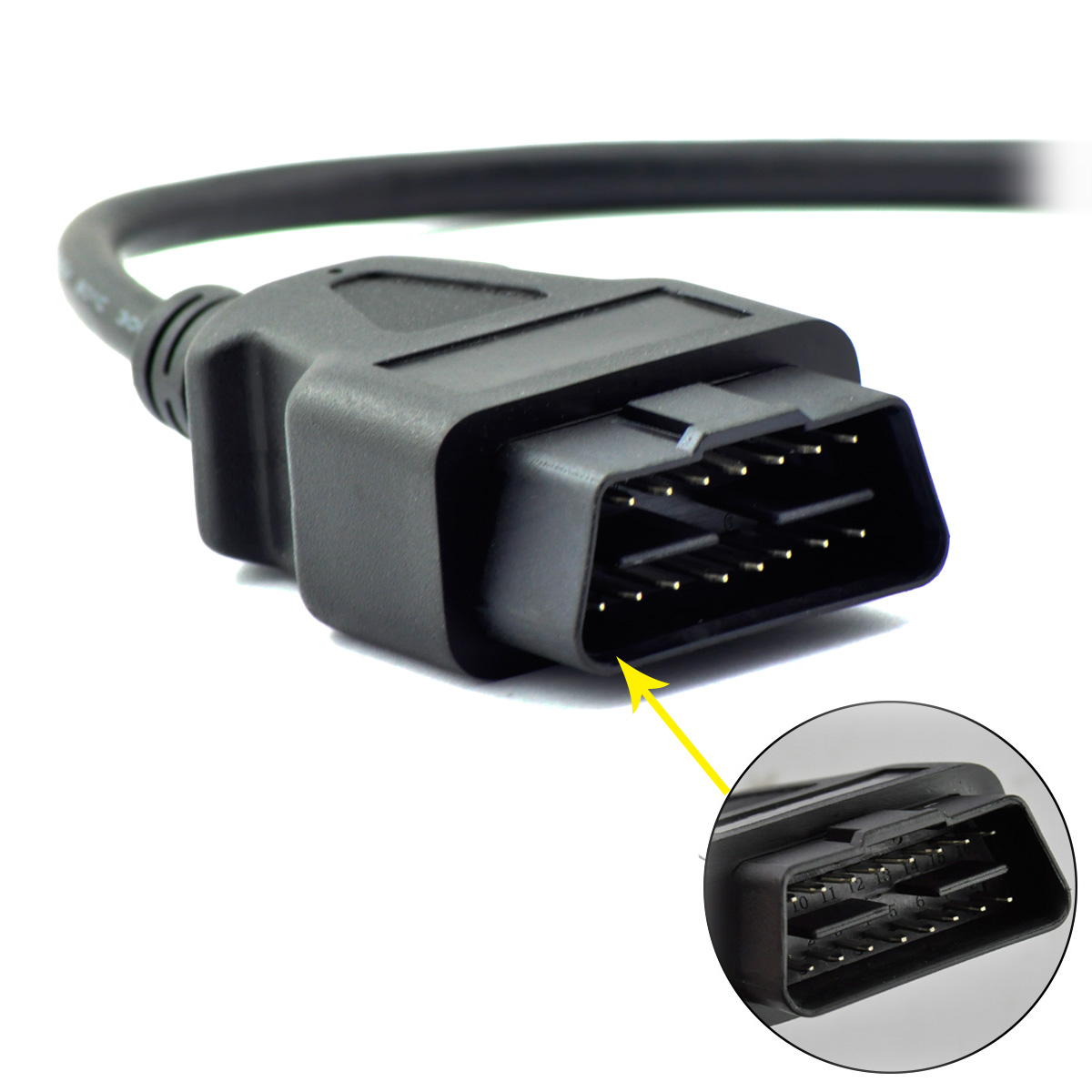

Connection: 16 Pin OBDII J1962 male Connector, Open Plug Wire.
All 16 Pins Connected

- OBD2 Connector Pinout:
- PIN 1 - Manufacturers discretion
- PIN 2 - SAE J1850 Line (Bus +) *
- PIN 3 - Manufacturers discretion
- PIN 4 - Chassis Ground
- PIN 5 - Signal Ground
- PIN 6 - SAE J2284 (CAN High) *
- PIN 7 - K Line of ISO 9141-2 & ISO/DIS 4230-4*
- PIN 8 - Manufacturers discretion
- PIN 9 - Manufacturers discretion
- PIN 10 - SAE J1850 Line (Bus -) *
- PIN 11 - Manufacturers discretion
- PIN 12 - Manufacturers discretion
- PIN 13 - Manufacturers discretion
- PIN 14 - SAE J2284 (CAN Low) *
- PIN 15 - L Line of ISO 9141-2 & ISO/DIS 4230-4*
- PIN 16 - Unswitched Vehicle Battery Positive

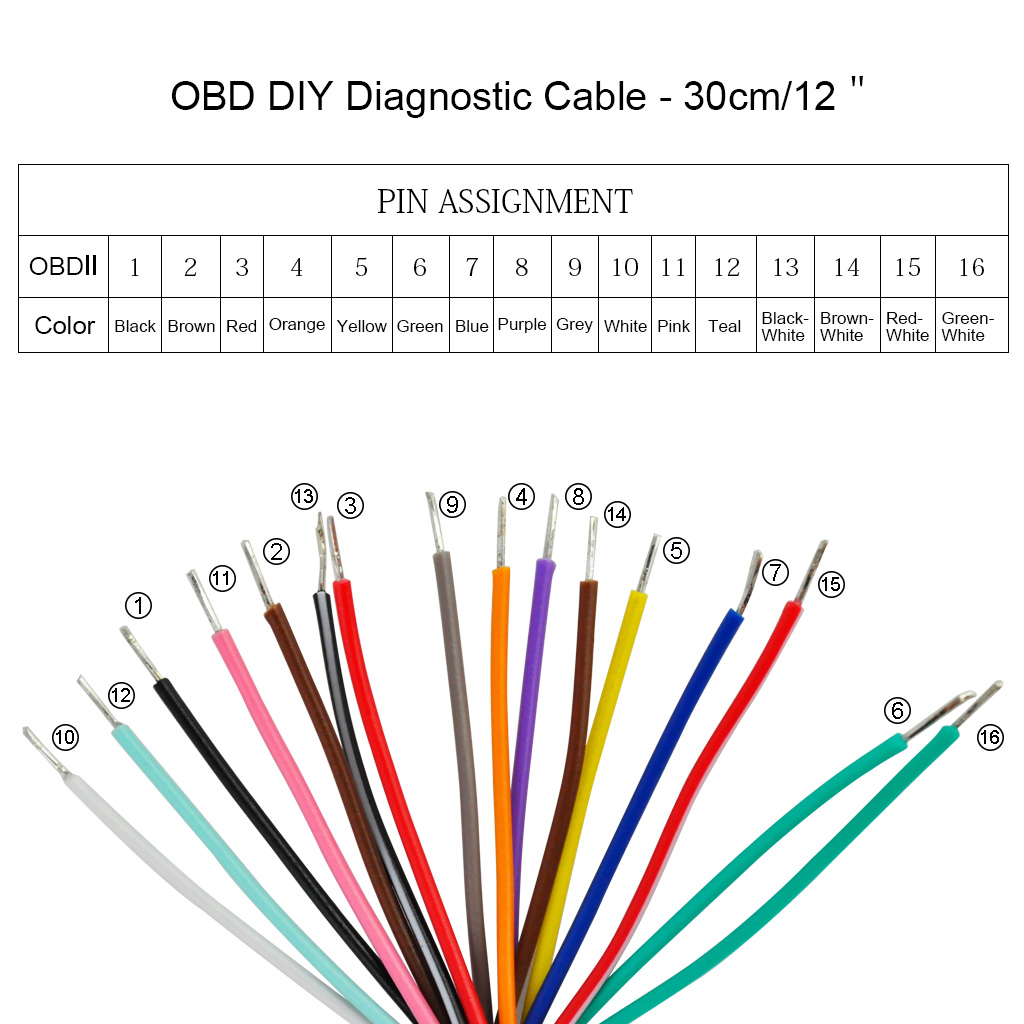

This is second color Pin Assignments
1 - red
2 - white
3 - orange
4 - blue
5 - green
6 - yellow
7 - brown
8 - purple
9 - red/black
10 - white/black
11 - orange/black
12 - blue/black
13 - green/black
14 - yellow/black
15 - brown/black
16 - purple/black

Package included:
1 X 30cm 16-Pins OBDII Male Connector Open Wire
